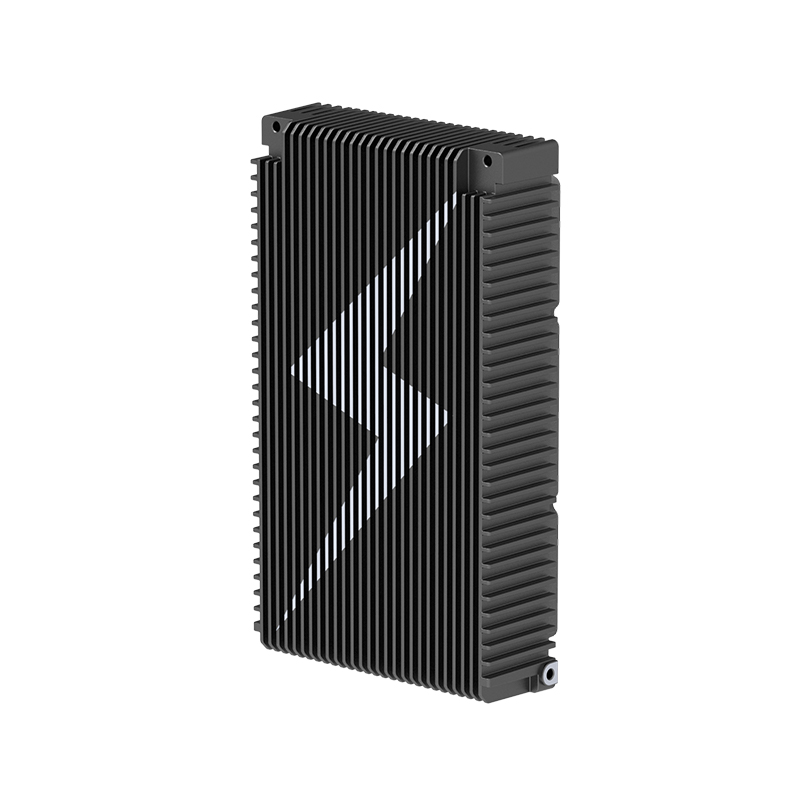

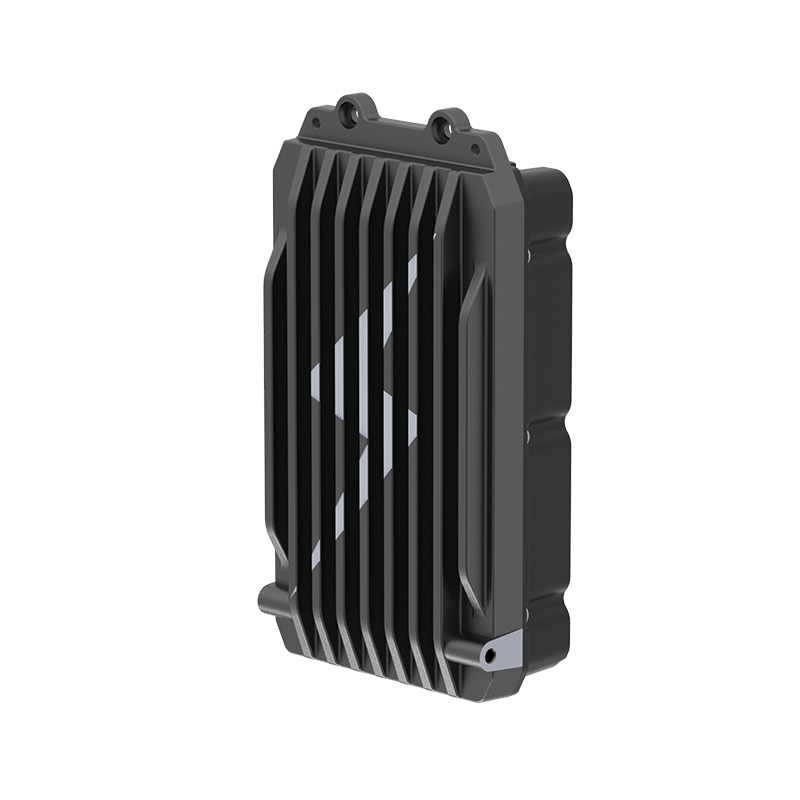

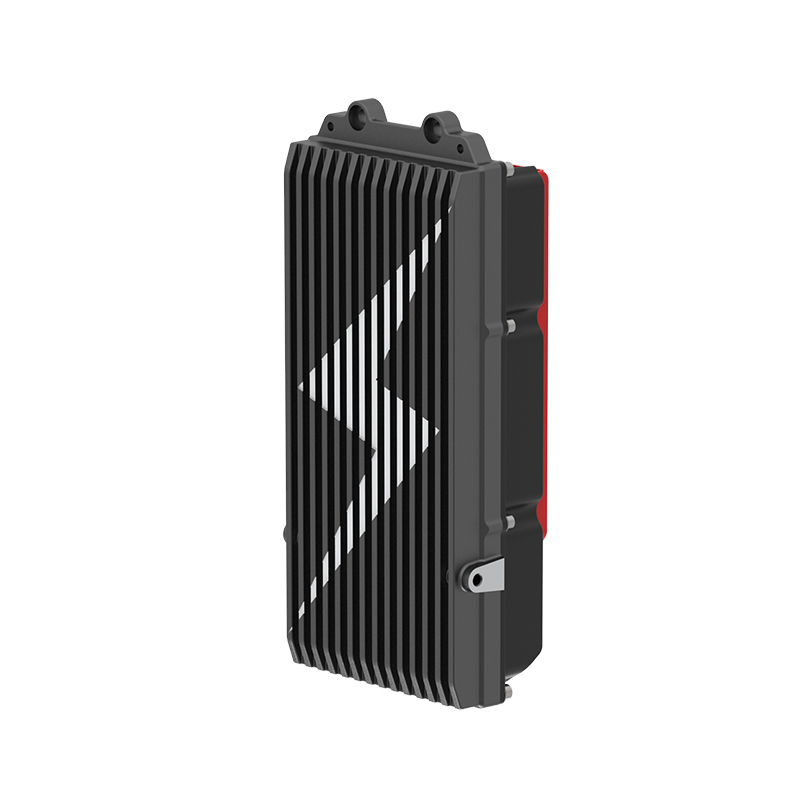

S Series （apply to S3、S4、S8、S10）Brushless DC Motor Controller Sport Edition
S Series （apply to S3、S4、S8、S10）Brushless DC Motor Controller Sport Edition
S Series （apply to S3、S4、S8、S10）Brushless DC Motor Controller Sport Edition
S Series （apply to S3、S4、S8、S10）Brushless DC Motor Controller Sport Edition

S Series （apply to S3、S4、S8、S10）Brushless DC Motor Controller Sport Edition

APT-S Series products, specially designed and optimised for off-road electric motorcycles, highlight high power, high explosive force, and excellent handling and following performance, perfectly realising the handling and power of off-road vehicles. wide voltage platform upto 144V, massive power upto 50kW.

Technical Parameters

Application&Features

Contact us

Electrical Parameters Control Mode Vector Control - Sine Wave Modulation 1. Maximum phase current limitation
2. Maximum DC bus current limitation
3. Maximum speed limitation
4. Over-temperature protection
5. Over-voltage monitoring and protection
6. Over-current monitoring and dynamic power adjustment
7. Low-voltage protection and dynamic limitation
8. Short-circuit protection
9. Overload protection and dynamic power adjustment
10. Reverse connection protection
11. Hierarchical safety strategy
-		 1. CANBOOT-based OTA
2. Adapt to VCU's CAN command control
3. Speed mode
4. Rotation direction switching
5. Automatic field weakening
6. Program upgrade
7. Anti-slip (HHC)
8. EABS feedback auxiliary braking
9. TCS traction control
10. Single pedal control
11. OBD mode
Maximum Conversion Efficiency 98% - -
Communication Interface Vehicle Communication CANBUS - Isolated type, terminal resistance adjustable
Upper Computer Communication UART-TTL - Wired connection or built-in Bluetooth
Environmental Requirements Cooling Method Natural Cooling - Air cooling
Waterproof Rating IP67 - Controller enclosure sealed
Humidity Range 5%~95% - -
Maximum Altitude 4000 m -
Execution Standard Electrical: GB/T18488 - - -
Salt Spray: GB/T 2423.17
IP Rating: GB/T 4208-2017
Vibration: GB/T 2423.10-2008

Product
Model		 Voltage
range		 Motor phase
current limit		 DC Input current
Default limit Max. capability
S2 30-85V 300A 100A 200
S3 30-85V 500A 180A 300
S4 30-85V 600A 200A 400
S5 30-85V 800A 280A 400
S8 30-170V 1000A 350A 500
S10 30-170V 1200A 400A 500

Applications:

  • It is used to control the drive motor and auxiliary motors, such as air conditioning compressors and steering assist pumps. These devices can reduce the overall energy consumption of the vehicle and extend its range.
  • Its high power density, high efficiency, and wide speed control range can meet the power performance requirements of electric vehicles. In electric buses, it can also leverage its high energy efficiency, energy conservation, and high reliability features, thereby reducing operating costs.
  • To dissipate heat from core components such as batteries, motors, and electronic control units, specialized automotive cooling fans are installed.  These fans are designed to meet the needs of small vehicle spaces and the precise heat dissipation of multiple components. They are small in size, have more precise control, and can be linked with the VCU control system to achieve efficient and energy-saving operation, reducing noise and maintenance costs.
