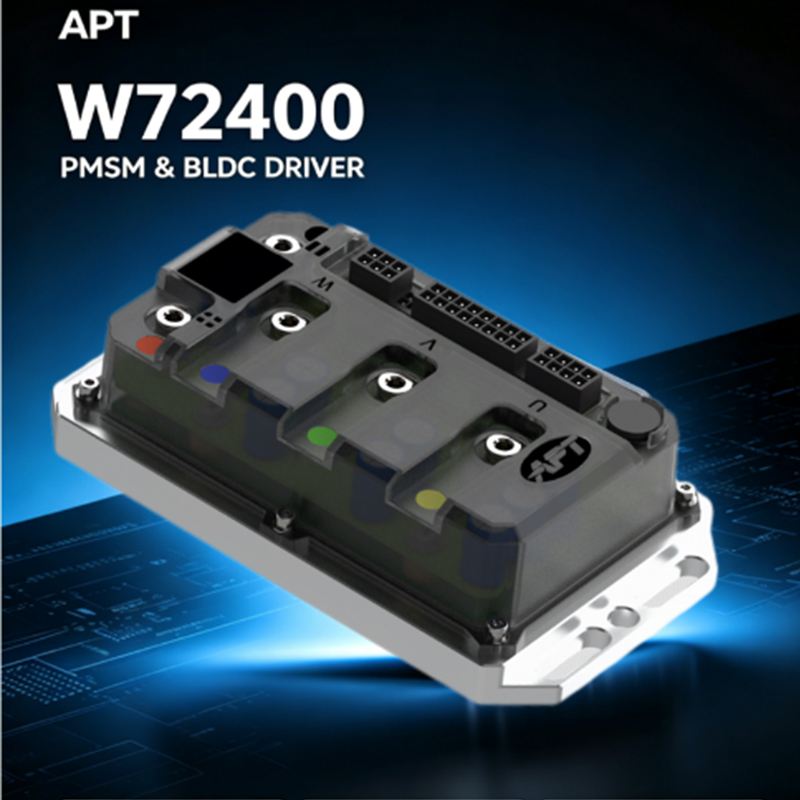

APT W72400 72V 15KW Peak PMSM & BLDC Motor Controller with FOC, Bluetooth, CANBUS

High-performance sine-wave motor controller for PMSM and BLDC motors. Delivers 3kW rated / 15kW peak power with FOC control, built-in Bluetooth wireless tuning, and IP65 protection — built for electric scooters, e-motorcycles, and go-karts.

The APT W72400 is a compact, high-power motor driver designed for personal electric mobility applications. It supports both PMSM (Permanent Magnet Synchronous) and BLDC (Brushless DC) motors, delivering smooth sine-wave output and precise torque control.

Equipped with FOC (Field-Oriented Control) and SVPWM sine-wave modulation, the W72400 ensures quieter operation, higher efficiency, and better throttle response compared to traditional six-step controllers. Advanced DTC (Direct Torque Control) and MTPA (Maximum Torque Per Ampere) algorithms further optimize performance across the entire RPM range.

Built-in Bluetooth allows wireless tuning and monitoring via your smartphone (Android / iOS) or PC (Windows) — no USB cable needed on the ride. The controller also supports CANBUS and RS485 communication for integration with displays, dashboards, and vehicle networks.

With an IP65 rating, a wide -25°C to 55°C operating temperature range, and comprehensive protection (over-voltage, under-voltage, over-current, over-temperature, and short-circuit), the W72400 is built to handle real-world riding conditions. Every unit undergoes 100% full-load aging testing before shipping.

Technical Parameters

Application&Features

Contact us

Key Highlights

  • 3kW Rated / 15kW Peak Power— enough punch for high-performance builds
  • FOC + SVPWM Sine-Wave— smooth, quiet, efficient
  • DTC & MTPA Algorithms— precise torque, maximum efficiency
  • Built-in Bluetooth— wireless tuning with Android app
  • CANBUS & RS485— ready for vehicle network integration
  • IP65 Protection— dust-tight and water-resistant
  • Slim Aluminum Chassis— lightweight (0.95kg) and easy to mount
  • 100% Aging Tested— quality you can trust

Typical Applications: Electric scooters, electric motorcycles / mopeds, e-bikes, go-karts, light electric vehicles.


Item Specification
Model W72400 (Ver. 250303)
Motor Type PMSM / BLDC
Rated Power 3 kW
Peak Power 15 kW
Max Input Voltage 92 V (supports 22S NCM battery)
DC Input Current (Rated) 200 A
AC Output Current (Peak-Peak) 400 A
Control Algorithm FOC / SVPWM Sinewave, DTC, MTPA
Communication CANBUS, RS485
Debug Interface Built-in Bluetooth, UART
Host Software Android
Protection Grade IP65
Operating Temperature -25°C ~ 55°C
Max Altitude 4,000 m
Protection Functions LVP, OVP, OCP, Temperature Monitor, Short Circuit Protection
Housing Aluminum alloy profile, plastic shell
Weight 0.95 kg (@ 3KVA)

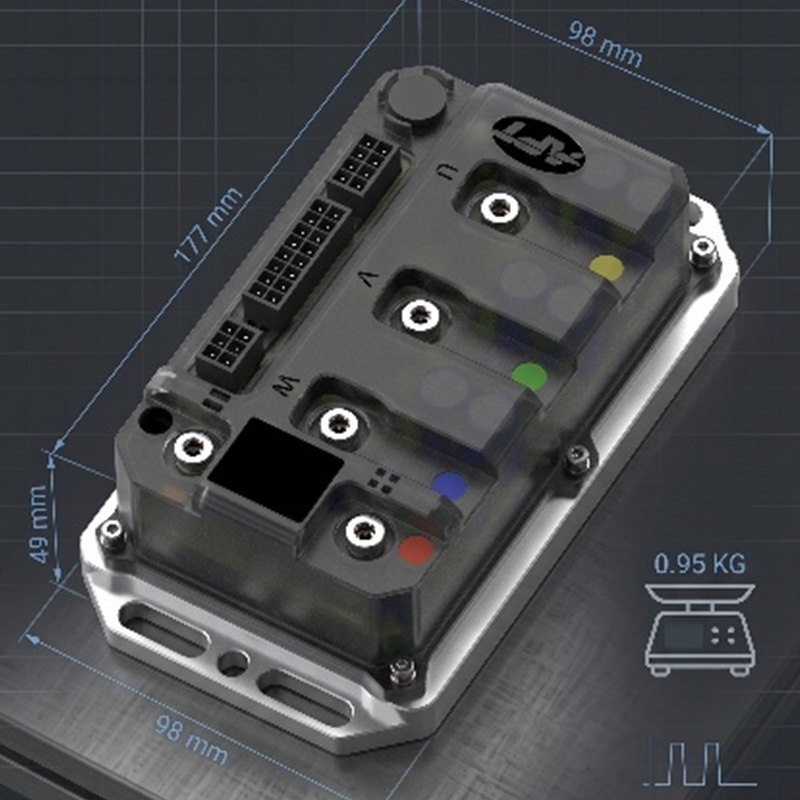

Dimensions 177 × 98 × 49 mm
Brand APT (Shanghai Advanced Power Technology Co., Ltd.)

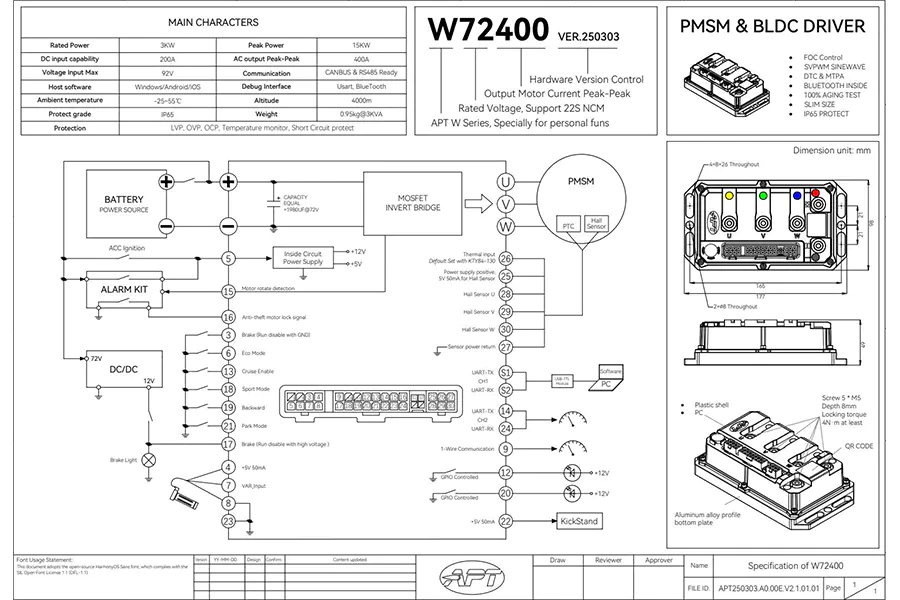

20260924102254
